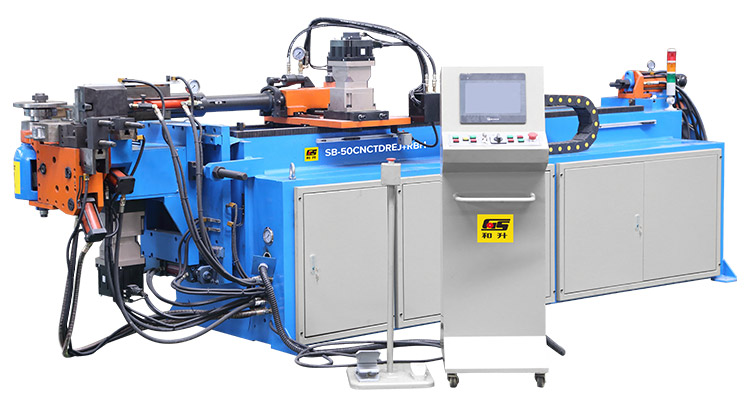

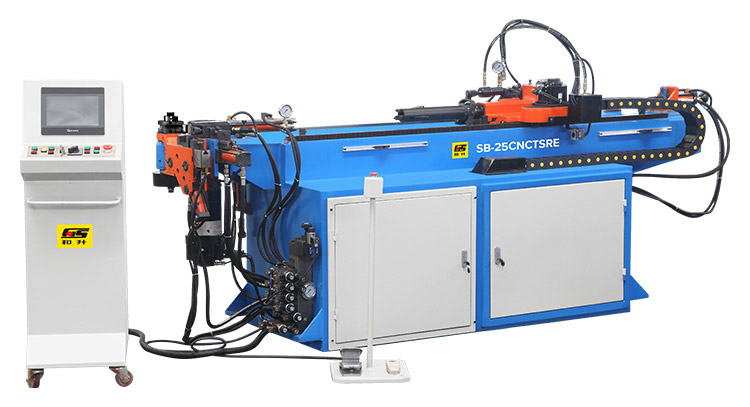

| CNC型全自動數(shù)控彎管機 | 18CNC | 25CNC | 38CNC | 50CNC | 65CNC | 75CNC | 89CNC | 100CNC | 120CNC | 150CNC | 168CNC | ||
| 彎管能力 | 管子尺寸 | 外徑×壁厚 |
￠18 ×2.0 |
￠25.4 ×3.0 |
￠38 ×3.0 |
￠50.8 ×3.0 |
￠65 ×3.0 |
￠75 ×4.0 |
￠89 ×4.0 |
￠100 ×5.5 |
￠120 ×6.5 |
￠150 ×8 |
￠168 ×10 |
| 最大彎曲半徑 | mm | 70 | 100 | 150 | 220 | 250 | 275 | 300 | 400 | 500 | 600 | 700 | |
| 通芯有效距離 | mm | 1800 | 1800 | 3000 | 3000 | 3800 | 3800 | 3800 | 4400 | 5000 | 5500 | 6500 | |
| 運作速度 | 送料 | mm /s | 200-1000 | 200-1000 | 250-900 | 250-900 | 200-700 | 200-700 | 200-700 | 200-650 | 150-600 | 300 | 200 |
| 旋轉 | 度/秒°/s | 40-280 | 36-250 | 30-210 | 30-200 | 25-180 | 25-180 | 20-150 | 25-120 | 25-120 | 40 | 20 | |
| 彎曲 | 度/秒°/s | 40-250 | 36-200 | 30-110 | 30-100 | 20-35 | 20-35 | 15-32 | 20-30 | 20-30 | 10 | 8 | |
| 彎曲角度 | 度° | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | |
| 旋轉角度 | 度° | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | |
| 機械精度 | 送料 | mm | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 |
| 旋轉 | 度° | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | |
| 彎曲 | 度° | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 |
±0.10 |
|
